The RadioMaster ER series of PWM receivers are based on the revolutionary ExpressLRS system. It offers high performance, high reliability, flexible configuration, fast response speed and ultra-long range bringing you brand new experience with your hobby.

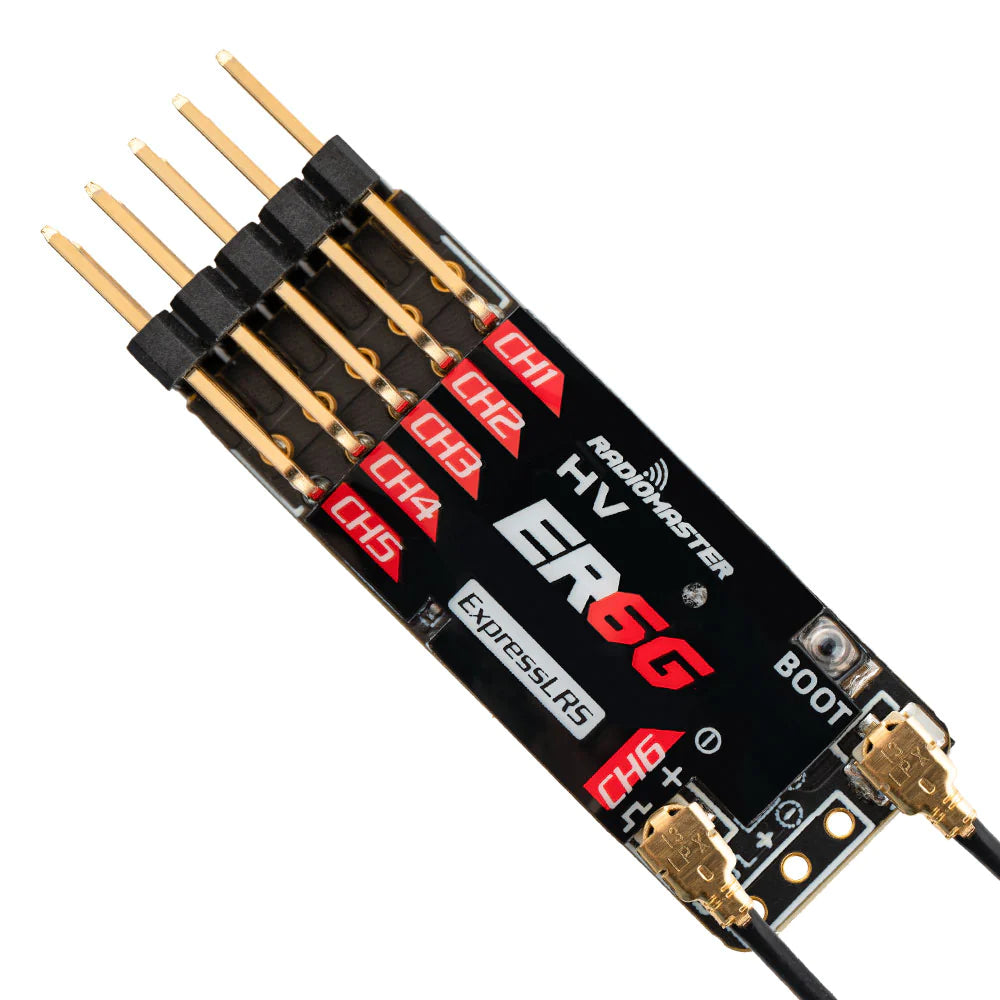

The ER6G & ER6GV receiver have been specially designed for glider pilots who require a compact and slim receiver. It can drive up to 6 servos and has built-in receiver voltage telemetry and flight battery telemetry with the ability to automatically detect which voltage input to use. Both ER6G & ER6GV feature a dual-antenna with telemetry power up to 50mw and can work stably with a 1S Lipo receiver battery.
The ER6G Receiver has the same functionality as the ER6GV only without a built in Vario for competitions that prohibit the use of a Vario or simply for users who do not need a vario on their receiver.
Specifications
ER6G
- Item: ER6G 2.4GHz ELRS PWM Receiver
- Power supply: DC 3.5 – 8.4V
- Antenna type: 15cm high sensitivity antenna
- Wireless protocol: ExpressLRS 3.2 pre-installed
- Output channel: 6CH PWM
- Return power: maximum 50mw (LUA Adjustable)
- Battery voltage detection range: DC 4.0 – 35V
- Weight: 4.0 grams
- Dimensions: 42*13*8mm
- Firmware: Device Category: Radiomaster 2.4Ghz / Device: Radiomaster ER6G
ER6GV
- Item: ER6GV 2.4GHz ELRS PWM Receiver
- Power supply: DC 3.5 – 8.4V
- Antenna type: 15cm high sensitivity antenna
- Wireless protocol: ExpressLRS 3.2 pre-installed
- Output channel: 6CH PWM
- Return power: maximum 50mw (LUA Adjustable)
- Built-in high-precision air pressure sensor (Vario)
- Battery voltage detection range: DC 4.0 – 35V
- Weight: 4.0 grams
- Dimensions: 42*13*8mm
- Firmware: Device Category: Radiomaster 2.4Ghz / Device: Radiomaster ER6GV
Includes
- 1 x ER6G or ER6GV 2.4GHz ELRS PWM Receiver
- 1 x Voltage telemetry wire (Type-A)
- 2 x Heat-shrink tube
- 1 x User Card
