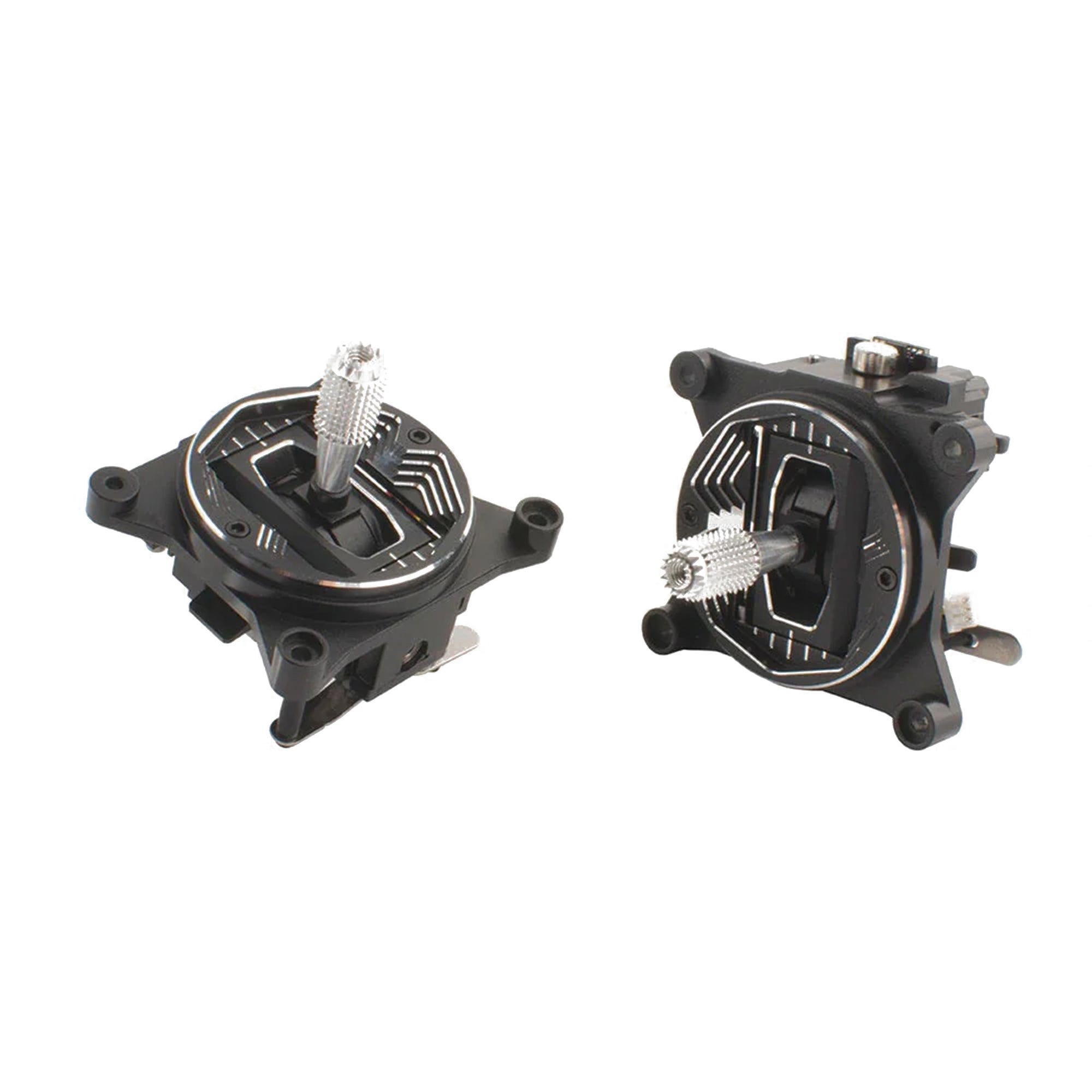

RadioMaster AG01 Mini CNC Hall Gimbal for Zorro & TX12 (1 Throttle 1 Centering) Discount Cheapest

Are you looking to buy RadioMaster AG01 Mini CNC Hall Gimbals in Australia?

The long-awaited AG01 Mini is finally here! Custom designed for the RadioMaster Zorro and TX12, these gimbals allow for unparalleled precision and stick feel.
From the aviation-grade aluminum construction, non-contact hall sensors, and pre-installed Sticky360 Mini Gimbal Sticks, be prepared to revolutionize your compact radio experience!

Key Features

Made with CNC processed aviation grade aluminum.
Sticky360 Mini Gimbal Sticks as standard.
Non contact hall sensors for accurate control inputs and precise centering.
Quad precision bearings for unparalleled stick feel.
Adjustable vertical travel angle (Min. 38°, Max. 54°).
Custom designed for RadioMaster Zorro & TX12.

Specifications

Name: AG01 Mini CNC Hall Gimbal
Sensor type: Hall Sensor
Working voltage: DC 3.3V
Linearity: Real-time (No delay)
Adjustable vertical travel range: 38°—54°
Self-centering adjustment: Yes
Easy mode adjustment
Adjustable tension & ratchet: Yes
Quad bearing: Yes
Temperature range: -20°C-85°C
Size: 49*42*48mm
Weight: 42g(±0.3g)



Installation for Zorro & TX12

The AG01 Mini gimbals are shipped as self-centering by default and are compatible with both the Zorro and TX12 Radios.

Size

Package

• 2 * AG01 Mini Hall CNC Gimbal
• 2 * Hex tool
• 8 * Installation screw
• 2 * Spare normal tension spring
• 2 * Throttle tension screw
