HDZero Freestyle V2 VTX 100% Authentic Cheap Online

Are you looking to buy an HDZero Freestyle V2 VTX in Australia?

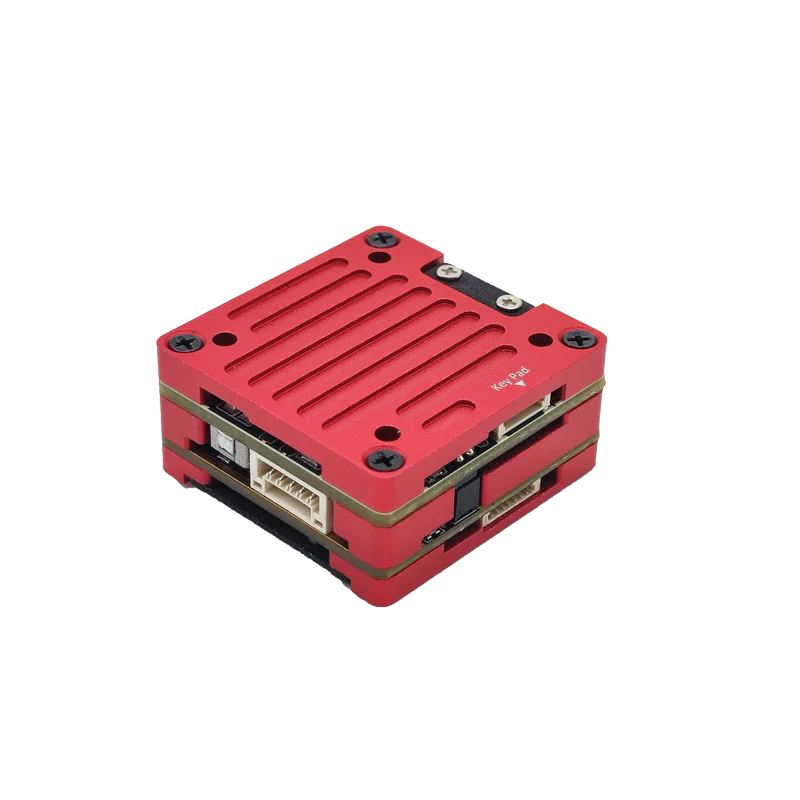

The HDZero Freestyle V2 VTX is our 2nd generation 5.8GHz digital video transmitter which can be fitted into most of the 3.5-inch and 5-inch drones. All the sockets are well protected by the CNC case that provides durability, RF shielding and improved signal integrity. A wire harness is included for solderless connection for power and MSP UART port. The antenna and MIPI cable are secured by the included retention bar and screws.
The VTX supports 720p60 ,1080p30, 540p60 and 540p90 video modes.
The VTX is capable of maximum 1W RF output at R1 channel if unlocked with license or approval from
the authority.

Specifications

• Manufacturer – Divimath, Inc
• Model – HDZero Freestyle V2 VTX
• Weight – 22.3 g
• Dimensions – 29x30x14mm
• Operating Frequency – 5.725-5.850GHz
• Transmitter Power – 25mW,200mW
• Mounting Pattern – 20x20mm M2 holes
• Antenna Interface – Secured U.FL
• Video In – Secured MIPI
• SmartAudio – Yes
• MSP Canvas Mode – Yes
• Input Power – 7-25V
• Operating Temperature – 32˚F-104 ˚F (0˚-40˚C)
• Power Consumption – 6-15W

Included

• 1x Freestyle V2 VTX
• 1x Power Cable
• 1x SA Cable
• 1x Plastic bar for Mipi Cable with 3 x screws (M1.4 x 2mm).
• 1x Plastic bar for U.FL with 3 x screws (M1.4 x 8mm)
• 1x Double Sided Tape (29 x 30 x 1mm)
