Are you looking to buy a Happymodel X12 AIO 5-in-1 Board in Australia?

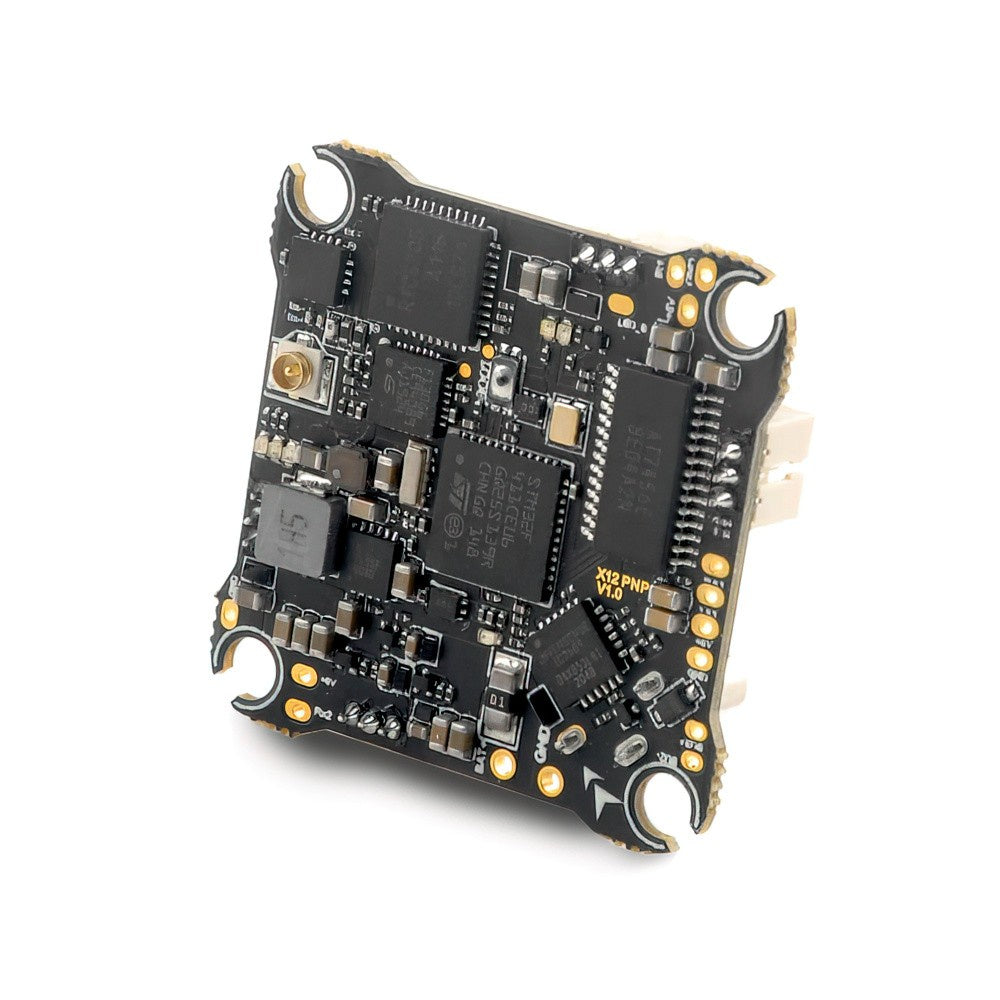

The Happymodel X12 is a 5-in-1 AIO board featuring an F4 Flight Controller, onbard 12A 4-in-1 ESC, 5.8GHz OpenVTX, and three different receiver options: PNP, FrSky, or ELRS. This AIO is great for brushless whoops with its great RX an VTX range!

5-in-1 AIO flight controller using OpenVTX (up to 400mW), 12A ESC (BLHeli_S ESC), onboard ELRS receiver (2.0 firmware), plugin connector for your motors and can take 1S or 2S batteries.

Notes: This is the V2 version capable of taking up to 2S.

Specifications:

• FC:
  • Betaflight firmware target: CRAZYBEEF4SX1280
  • MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
  • Sensor: ICM42688P
  • Mount hole size: 25.5mm*25.5mm
  • Power supply: 1-2S battery input (DC 2.9V-8.7V)
  • Built-in 12A (each) Blheli_S 4in1 ESC
  • Built-in Betaflight OSD (SPI Control)
  • Built-in 5.8G OpenVTX 0mw~400mw
  • Built-in ExpressLRS 2.4G,
  • Built-in voltage meter sensor: voltage meter scale 110
  • Built-in current meter sensor: current meter scale 470
  • Weight: 5.1g

• 4in1 ESC:
  • Power supply: 1-2S LiPo/LiPo HV
  • Current: 12A continuous peak 15A (3 seconds)
  • Supports BLHeliSuite
  • Factory firmware: Z_H_30_REV16_7.HEX
  • Default protocol: DSHOT300
  • Supports Bluejay firmware
  • When using Bluejay firmware with 48khz, set startup power to 1100/1200

• Receiver:
  • Packet rate options: 50Hz/150Hz/250Hz/500Hz
  • ExpressLRS firmware version: V2.0
  • RF frequency: 2.4GHz
  • Antenna : SMD antenna
  • Telemetry output Power: <12dBm
  • Receiver protocol:  SPI ExpressLRS
  • Compatible with ExpressLRS V2.0 TX Modules
  • Can’t flash ExpressLRS firmware separately

• OpenVTX:
  • Firmware version: OPENVTX
  • Smartaudio v2.1
  • PIT mode supported
  • RACE mode supported
  • Channels: 48ch
  • Transmitting Power: 0/RACE/25mw/100mw/400mw
  • Power supply: DC 5V
  • Current (5v): <650ma (400mw)
  • Antenna connector: U.FL

Package:

• 1x X12 AIO Board
• 1x Dipole UFL Antenna
• 1x Camera cable
• 1x PH2.0 Pigtail
• 1x set of screws and grommets
