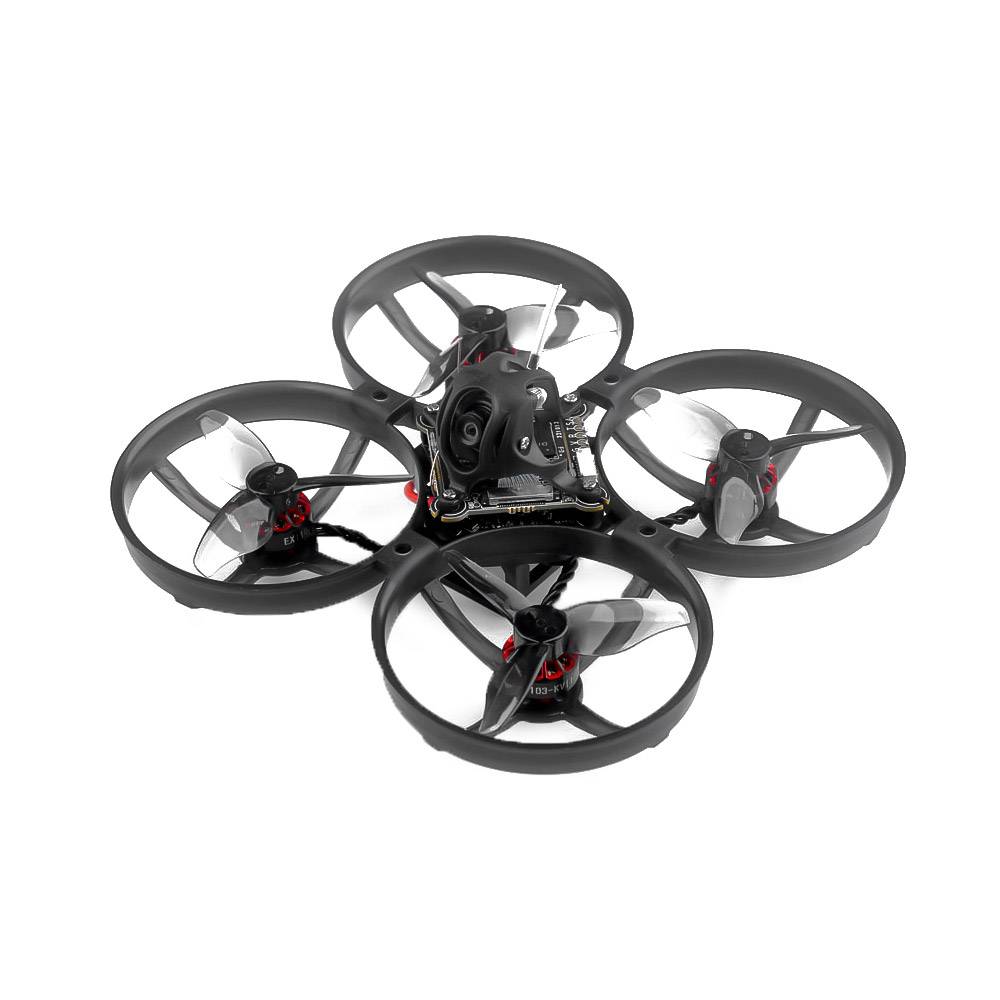

Happymodel Mobula8 1-2S 85mm HD Drone w ELRS – DJI O3/HDZero/Walksnail Sale High Quality

Are you looking to buy a HappyModel Mobula8 1-2S 85mm HD with ELRS DJI 03/HDZero/Walksnail Drone in Australia?

The Mobula8 is Happymodel’s first attempt at an 85mm frame! This whoop comes with a Crazy F405 ELRS HD flight controller, EX1103 KV11000 motors, and Gemfan Hurricane 2023 tri-blade propellers, which have excellent power performance and extremely smooth flight characteristics. The perfect backyard ripper!

Features

• CrazyF405 HD Flight Controller w/ built-in 2.4GHz ELRS V3.0.1
• Compatible with 1-2S Lipo/LIHV battery
• Multiple HD camera options
• Smooth and powerful

Specifications

• Camera/VTX Options: DJI O3 Compatible (No Camera or VTX), DJI O3, Walksnail Avatar HD Lite, or HDZero Nano Lite
• Item Name: Mobula8 1-2S 85mm Micro FPV whoop drone
• Size: 120mm*120mm*50mm
• Brand Name: Happymodel
• Wheelbase: 85mm

Flight Controller

• Built-in voltage meter sensor, voltage meter scale 110
• Built-in current meter sensor, current meter scale 470
• MCU: STM32F405RGT6 (168MHZ, 1Mbyte FLASH)
• Power supply: 1-2S battery input (DC 2.9V-8.7V)
• GYRO Sensor: BMI270  (SPI connection)
• Built-in 12A(each) Blheli_S 4in1 ESC
• Mount hole size: 25.5mm*25.5mm
• Built-in Serial ExpressLRS 2.4G
• Model: Crazy F405 ELRS HD
• Built-in BMP280 Barometer
• Built-in 8MBp black box

Onboard UART ELRS 2.4Ghz Receiver

• Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
• Could update firmware via ExpressLRS configurator
• Antenna: enameled copper wire 31mm length
• Default firmware version: ExpressLRS V3.0.1
• Firmware target: HappyModel EP 2400 RX
• Telemetry output Power: <12dBm
• RF Frequency: 2.4GHz

Onboard 4in1 ESC

• Current: 12A continuous peak 15A (3 seconds)
• Factory firmware: Bluejay ESC V0.19
• Support BLHeli_S Bluejay firmware
• Power supply: 1-2S LiPo/LiPo HV
• Default protocol: DSHOT300
• Firmware target: Z-H-30
• *When using 1s battery and high KV 0702/0802 motors, should set the startup power to 1100/1200

Motors

• Motor Dimension(Dia.*Len):Φ13.5mm*15.5mm
• Mode: EX1103 KV11000
• Shaft Diameter:Φ1.5mm
• No.of Cells(Lipo):1-2S
• Configu-ration:9N12P
• Stator Diamter:11mm
• Stator Length:3mm
• Weight(g):3.8g

Propellers

• Motor Dimension(Dia.*Len):Φ13.5mm*15.5mm
• Mode: EX1103 KV11000
• Shaft Diameter:Φ1.5mm
• No.of Cells(Lipo):1-2S
• Configu-ration:9N12P
• Stator Diamter:11mm
• Stator Length:3mm
• Weight(g):3.8g

Recommended (not included)

• 2S Battery: 450mah/550mah/650mah

Included

• 1x Happymodel Mobula8 1-2S 85mm HD Drone (Choose Camera/VTX)
• 1x Gemfan Hurricane 2023 Tri-blade propellers (4CW+4CCW)
• 1x Spare Canopy
• 1x Screwdriver
