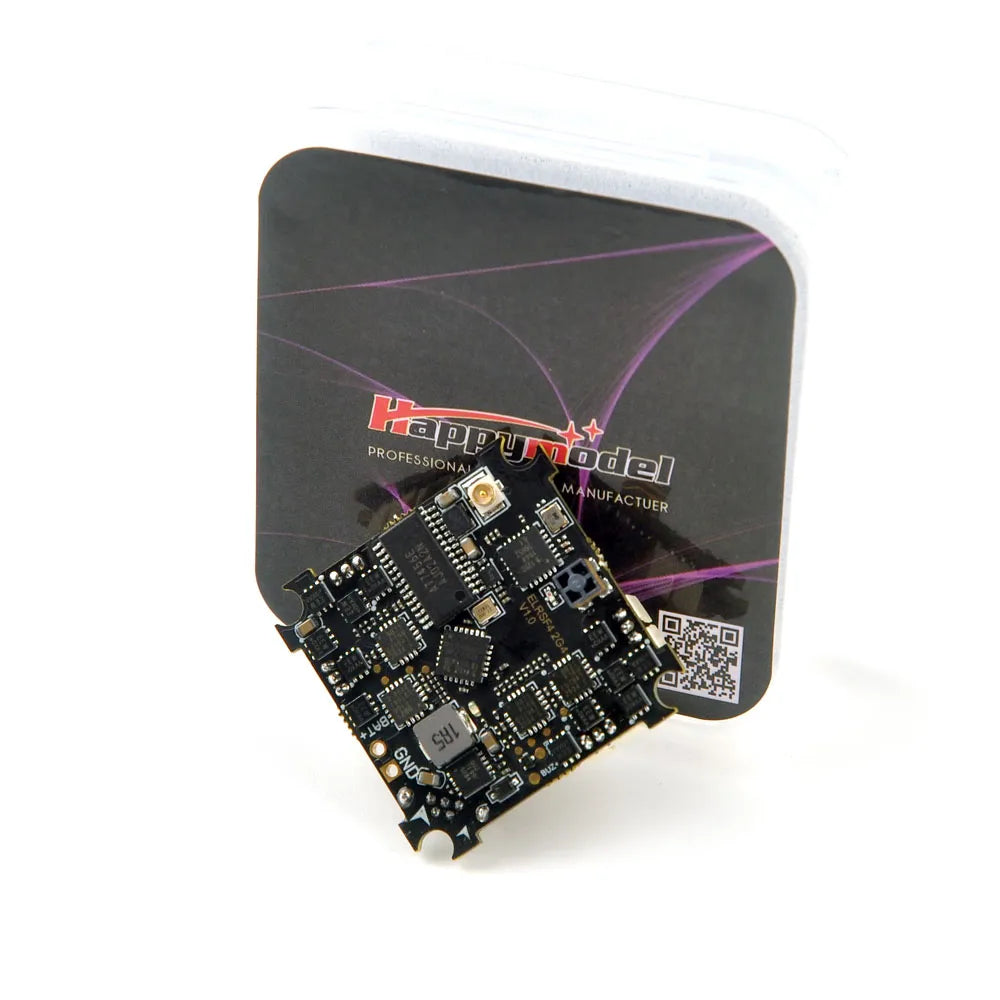

HappyModel ELRSF4 2G4 V3.3 AIO 5in1 Flight controller built-in SPI 2.4GHz ELRS RX Free Shipping Deals

Are you looking to buy a HappyModel ELRSF4 2G4 V3.3 AIO 5in1 Flight controller built-in SPI 2.4GHz ELRS RX in Australia?

The world’s first AIO 5in1 F4 flight controller with integrated SPI 2.4GHz ExpressLRS receiver has been launched. The flight controller integrates SPI controlled 2.4GHz ExpressLRS receiver, Dshot protocol 4-in-1 ESC, 5.8GHz 40ch video transmitter and Betaflight OSD. Ultra-small size and ultra-stable remote control range can improve the range of the original SPI receiver. And because the 2.4GHz ExpressLRS receiver is equipped with the SX1280 radio frequency chip with high sensitivity, high packet rate and low latency, this flight controller is the one that all Race/Freestyle pilots needed. It is suitable for use in Tiny whoop Race or Toothpick Freestyle, and can also be used in 1S ultra-lightweight Nano Long Range platform.

V3.3 Version Update log

• V3.3 version comes with BMI270 or ICM42688P gyro due to MPU6000 was discontinued
• Onboard VTX changed to OPENVTX support 0mw~400mw
• Pre-install Betaflight firmware which support ELRS V2.0 TX firmware

Notes

Specifications

Flight Controller

• MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
• Gyro Sensor: Upgrade to ICM42688P or BMI270
• Original whoop size compatible
• Power supply: 1S battery input (DC 2.9V-4.35V)
• Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
• Built-in Betaflight OSD(SPI Control)
• Built-in 5.8G Open VTX
• Built-in SPI ExpressLRS 2.4GHz receiver
• Built-in 5V 1A BEC
• Flight controller firmware target: CRAZYBEEF4SX1280

Onboard 4in1 ESC

• MCU upgraded to EFM8BB21
• Power supply: 1S LiPo/LiPo HVCurrent: 5A continuous peak 6A (3 seconds)
• Support BLHeliSuite programmable
• Factory firmware: O_H_5_REV16_8.HEX
• Default protocol: DSHOT600

Onboard SPI ExpressLRS 2.4GHz Receiver

• Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
• RF Frequency: 2.4GHzAntenna : SMD antenna
• Telemetry output Power: <12dBm
• Receiver protocol:  SPI ExpressLRS
• Could bind with Happymodel ES24TX , ES24TX Lite, ES24TX Slim and DIY 2.4GHz ELRS TX module(Requires ELRS V2.0 firmware)

Onboard 5.8g VTX

• Output power: 0mw~400mw switchable
• Frequency: 48CH
• Input voltage: 3.3V~5.5V
• Current consumption: 300mA(type)
• Frequency: 5.8GHz 6 bands 48 channels(include Race band)
• Smartaudio V2.1 ready

Onboard voltage and Amperage meters settings

• Voltage meter scale setting 110
• Amperage meter scale setting 1175
