HappyModel 1S 3.7V Battery Series LiPos Balance Charging Board 100% Original Online

Are you looking to buy HappyModel 1S 3.7V Battery Series LiPos Balance Charging Board in Australia?

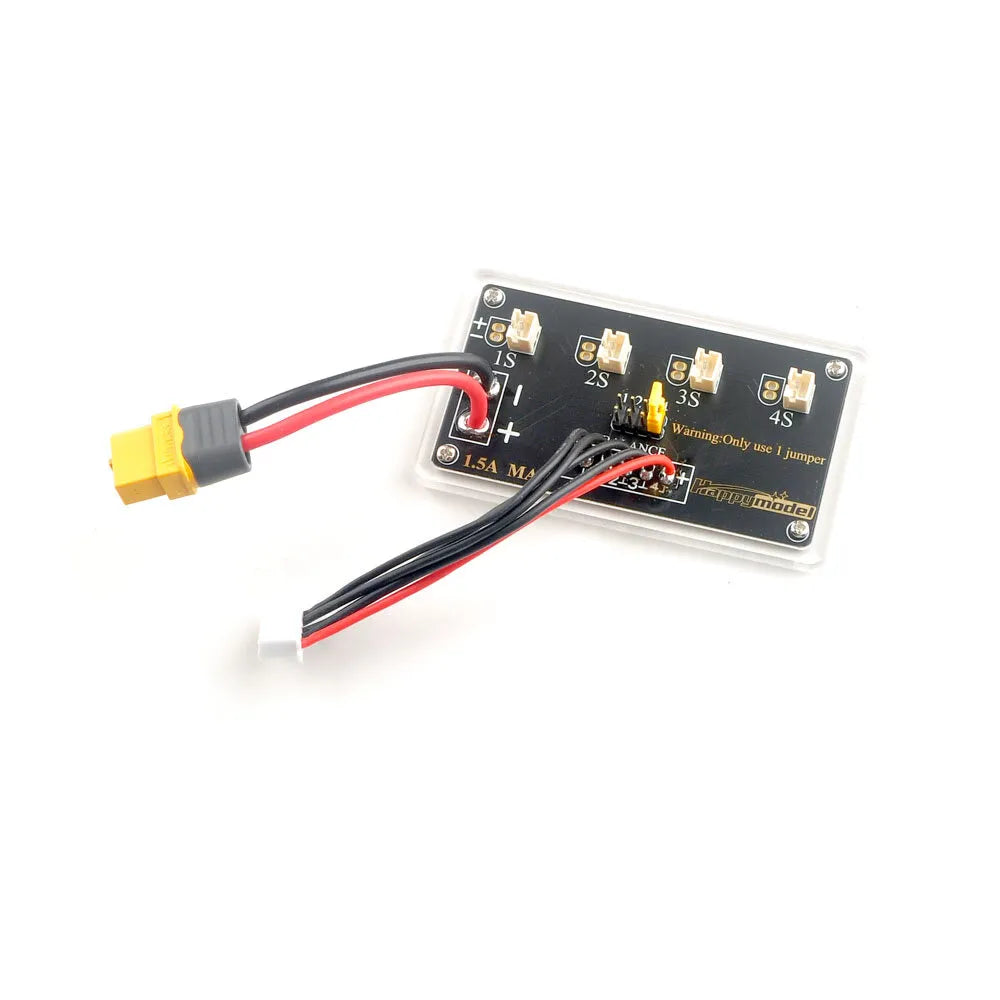

This board will allow you to charge or discharge up to 4 1S batteries simultaneously thanks to your personal charger, the latter will detect the cells as being in series (like a 4S battery with the capacity of a single cell).

Specifications

• Connection to the charger in XT60 + 4S balancing plug
• Max amperage: 1.5A
• Supports up to 4 1S lipos simultaneously
• Weight: 35g
• Dimensions: 81 * 46 * 20mm
• Selection of the number of elements to be detected using the jumper (included).

Connector

• 1x XT60H-F
• 1x JST-XH 4S1P
• 4x PH2.0

Important Information

• Be careful to always load identical Lipos with an equivalent discharge.
  If you charge 4 batteries at the same time, please insert the jumper cap.
  into the position of number “4”; if you charge 3 batteries at the same time,
  please insert the jumper cap into the position of number “3”, and so on.
