GEPRC GEP-Racer Frame Cheap Factory Outlet

Are You Looking For GEPRC GEP-Racer Frame In Australia?

When the conventional FPV drone cannot satisfy the pursuit of speed in the FPV racing arena, you need a racing frame specially designed for the competition. The GEPRC Racer was thus born.

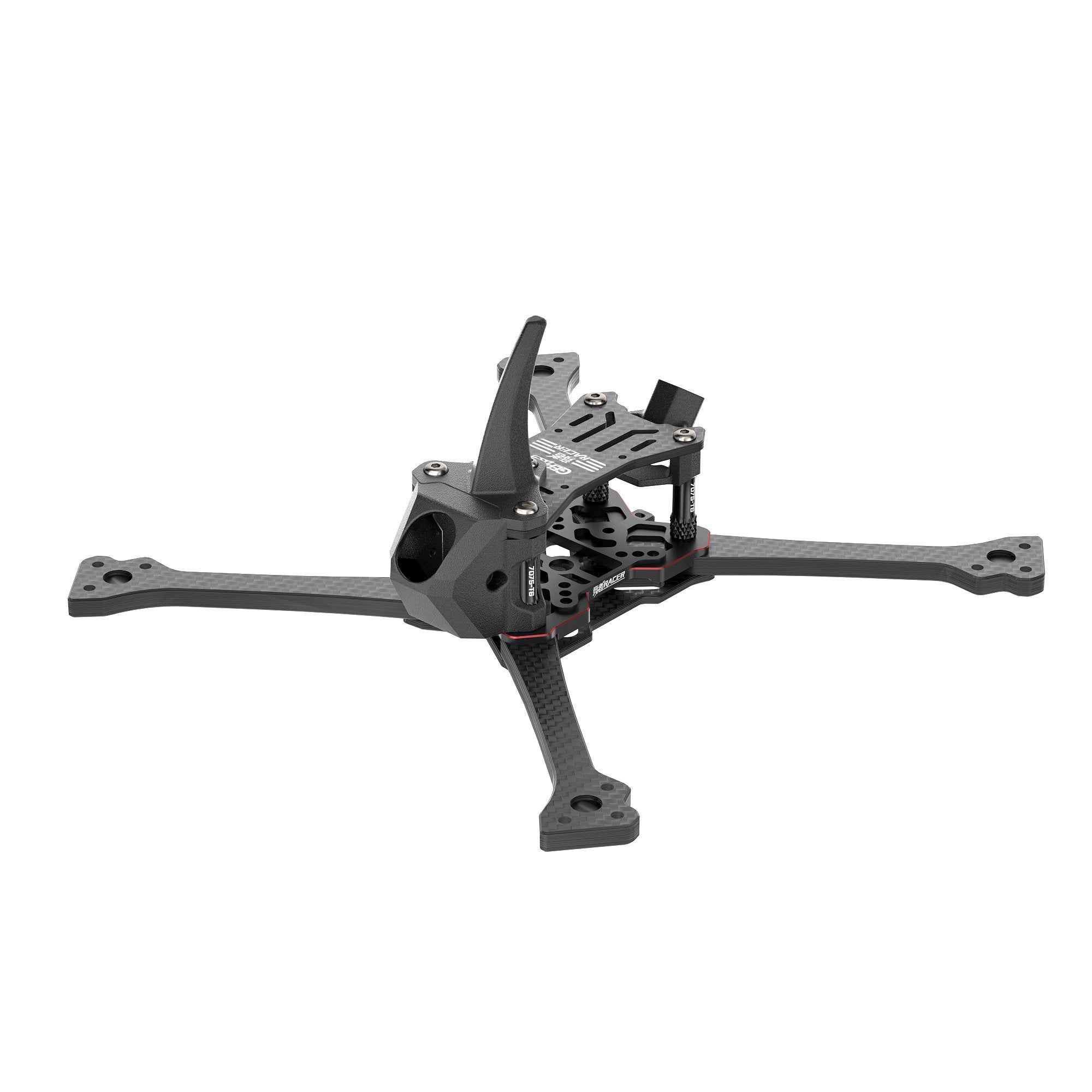

The Racer frame combines the 7075-T6 aviation aluminum alloy splint and the high-grade T700 carbon plate CNC processing, and the overall structure is solid. 20*20mm/25.5*25.5mm/30.5*30.5mm flight controller can be installed, and the motor mounting hole is 16*16mm.

Features

• High-strength 7075 aviation aluminum alloy splint
• T700 carbon fiber plate material
• Design shark fin support,easy to flip over after crash.
• Quick-release design of the arm is convenient for maintenance.
• 25.5mm*25.5mm M3 screw FC hole,matching the newest GEPRC 25.5MM stack.
• Compatible with HDZero VTX

Specifications

• Model: RACER FPV Frame
• Frame: GEP-RACER Frame
• Dimensions: 175mm×173mm
• Wheelbase: 208mm
• Top plate: 2.0mm
• Aluminum plate: 2.0mm
• Bottom plate: 2.0mm
• Arm thickness: 5.0mm
• Aluminum column size: M3*6*24mm
• FC mounting hole: 30.5mm*30.5mm/25.5mm*25.5mm/20mm*20mm
• VTX mounting hole: 20mm*20mm
• Motor mounting hole: 19mm*19mm
• Camera installation space: 14mm
• Propeller: 5 inches
• Weight: 78g±2g

Includes

• 1 x Top plate
• 1 x Bottom plate
• 1 x Aluminum plate
• 1 x Camera mount
• 1 x VTX antenna mount
• 1 x Shark fin print
• 4 x M3*6*24mm aluminum column
• 2 x 20*250mm battery cable ties
• 2 x Battery anti-skid pads
• 1 x Screw pack
• 1 x L-shaped screwdriver 1.5mm
• 1 x L-shaped screwdriver 2mm
