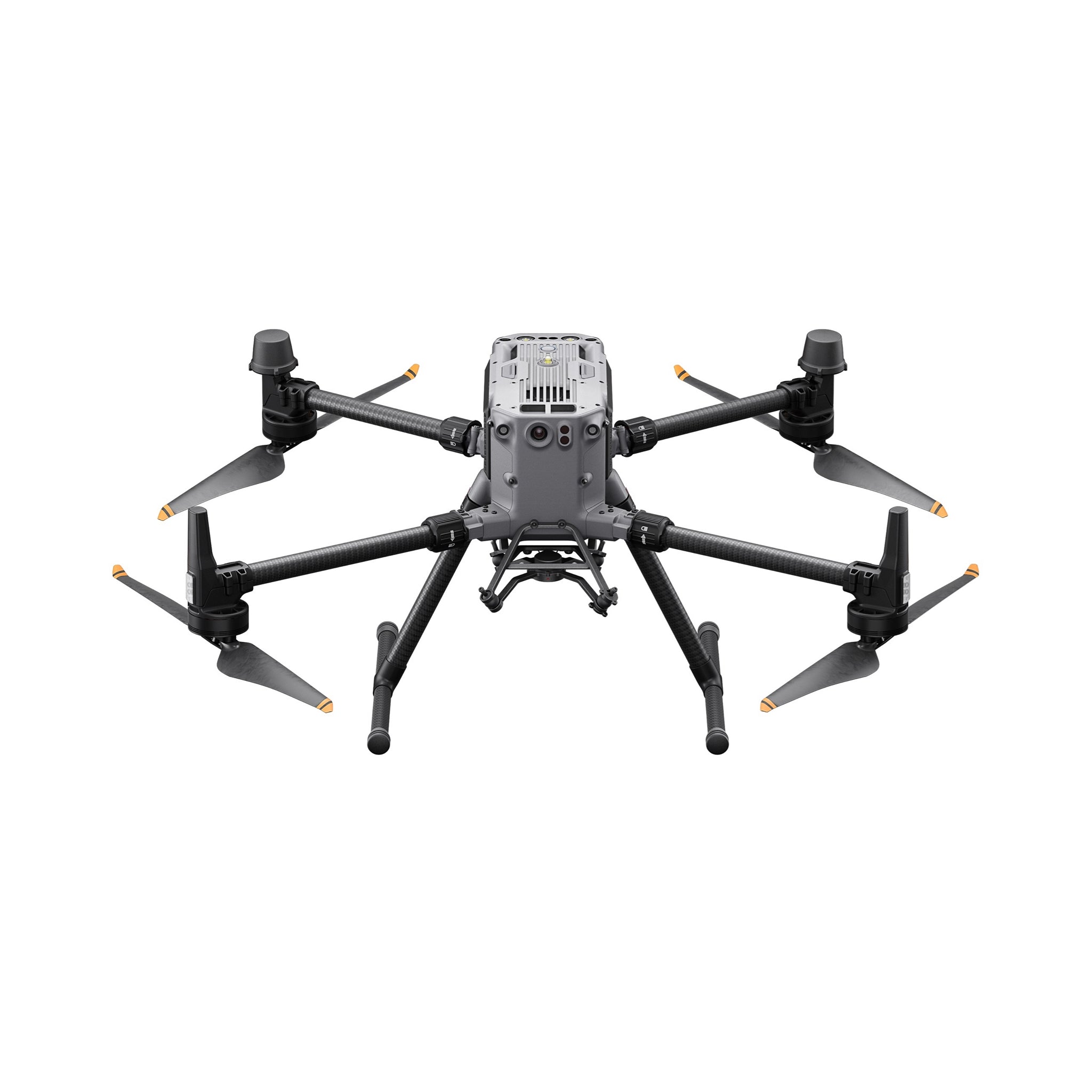

DJI Matrice 350 RTK NA SP Shield Basic Drone

An upgraded flagship drone platform, the Matrice 350 RTK sets a new benchmark for the industry. This next-generation drone platform features an all-new video transmission system and control experience, a more efficient battery system, and more comprehensive safety features, as well as robust payload and expansion capabilities. It is fully powered to inject innovative strength into any aerial operation.

Effortlessly Powerful Flight Performance
Built tough, the Matrice 350 RTK features powerful propulsion, enhanced protection rating, and excellent flight performance, allowing it to effortlessly tackle a wide variety of challenges.

O3 Enterprise Transmission
Matrice 350 RTK adopts DJI O3 Enterprise Transmission, which supports triple-channel 1080p HD live feeds, and a max transmission distance of 20 km. <6> Both the aircraft and the remote controller have a four-antenna transceiver system, which can intelligently select the two optimal antennas to transmit signals, while the four antennas receive signals simultaneously. In this way, anti-interference capabilities are significantly improved, and transmission stability is optimized.

DJI RC Plus
Equipped with a 7-inch high-bright screen, DJI RC Plus supports Dual Operator Mode and comes with a standard WB37 external battery that offers an operating time of up to six hours, meeting various operation needs.

Built Ready for Harsh Environments

IP54 rated, DJI RC Plus is dustproof and waterproof to operate reliably in bad weather. The operating temperature is -20° to 50° C (-4° to 122° F), supporting around-the-clock operation even in severely hot or cold environments.

Smooth and Efficient Control
There are several buttons and dials on the front, back, and top of the remote controller for fast operation. Button functions can be customized to fit users’ habits and deliver an intuitive and flexible experience.

DJI Pilot 2
The DJI Pilot 2 app has been further optimized to clearly present the mission type and flight status. Easy and smooth control of the aircraft and payloads facilitates more efficient operation.

New Dual-Battery System
The Matrice 350 RTK is equipped with a new TB65 dual-battery system, which supports battery hot swapping and allows for multiple flights without powering off. The battery can be charged up to 400 cycles, reducing the cost of a single flight.

Next-Gen Intelligent Battery Station
The new BS65 Intelligent Battery Station provides a one-stop solution for battery charging, storage, and transport.

Powerful Payloads
The Matrice 350 RTK supports a single downward gimbal, dual downward gimbals, and a single upward gimbal, and can carry three payloads simultaneously. The aircraft also has an E-Port open interface and a max payload capacity of 2.7 kg, meeting the needs of different operation scenarios like public safety, inspection, and mapping.

High-Precision Mapping
Matrice 350 RTK supports Waypoint, Mapping, Oblique, and Linear Flight missions. You can use Terrain Follow or Smart Oblique for efficient data collection. Together with DJI Terra, you can quickly obtain HD 2D and 3D digital results, enabling high-precision and high-efficiency mapping operation.

Air-to-Ground Coordination
With functions like the high-precision PinPoint and cloud-based real-time mapping, the Matrice 350 RTK can link the air, ground, and cloud together. After the aircraft completes image collection, DJI FlightHub 2 can quickly model the operation site and transmit command information to the aircraft and ground operators. Both the remote controller and FlightHub 2 support point, line, surface drawing, and real-time uploading, and can cooperate with the aircraft to livestream the real-time operation view, breaking through communication barriers for air-to-ground collaborative operation.

Automated Precision Inspection
Through Live Mission Recording, the Matrice 350 RTK can generate and store flight route files that can be used at any time to realize automated operation and make repetitive inspection no longer time-consuming or effort-consuming. When using AI Spot-Check, the Matrice 350 RTK supports automatic framing and manual adjustment of subjects to improve the accuracy of repeated shooting and the quality of inspection operation.

Key Features

• 55-Min Max Flight Time
• IP55 Rating
• DJI O3 Enterprise Transmission
• DJI RC Plus
• 400 Battery Cycles
• 6-Directional Sensing & Positioning
• Night-Vision FPV Camera
• Multi-Payload Support

Technical Specifications

Aircraft
Dimensions (unfolded, without propellers)
810×670×430 mm (L×W×H)
Dimensions (folded, with propellers)
430×420×430 mm (L×W×H)
Diagonal Wheelbase
895 mm
Weight (with single downward gimbal)
Without batteries:
Approx. 3.77 kg

With two TB65 batteries:
Approx. 6.47 kg
Single Gimbal Damper’s Max Payload
960 g
Max Takeoff Weight
9.2 kg
Operating Frequency
2.4000-2.4835 GHz
5.150-5.250 GHz (CE: 5.170-5.250 GHz)
5.725-5.850 GHz
In some countries and regions, the 5.1GHz and 5.8GHz frequency bands are prohibited, or the 5.1GHz frequency band is only allowed for indoor use. Please refer to local laws and regulations for more information.
Transmitter Power (EIRP)
2.4000-2.4835 GHz:
< 33 dBm (FCC)
< 20 dBm (CE/SRRC/MIC)

5.150-5.250 GHz (CE: 5.170-5.250 GHz):
< 23 dBm (CE)

5.725-5.850 GHz:
< 33 dBm (FCC/SRRC)
< 14 dBm (CE)
Hovering Accuracy (with moderate or no wind)
Vertical:
±0.1 m (with vision positioning)
±0.5 m (with GNSS positioning)
±0.1 m (with RTK positioning)

Horizontal:
±0.3 m (with vision positioning)
±1.5 m (with GNSS positioning)
±0.1 m (with RTK positioning)
RTK Positioning Accuracy (RTK FIX)
1 cm + 1 ppm (horizontal)
1.5 cm + 1 ppm (vertical)
Max Angular Velocity
Pitch: 300°/s
Yaw: 100°/s
Max Pitch Angle
30°
When in N mode and with the forward vision system enabled: 25°.
Max Ascent Speed
6 m/s
Max Descent Speed (vertical)
5 m/s
Max Tilted Descent Speed
7 m/s
Max Horizontal Speed
23 m/s
Max Flight Altitude
5000 m
When using the 2110s propellers and with the takeoff weight <= 7.4 kg.

7000 m
When using the 2112 High-Altitude Low-Noise Propellers and with the takeoff weight <= 7.2 kg.
Max Wind Speed Resistance
12 m/s
Max Flight Time
55 minutes
Measured with Matrice 350 RTK flying at approximately 8 m/s without payloads in a windless environment until the battery level reached 0%. Data is for reference only. Actual usage time may vary depending on the flight mode, accessories, and environment. Please pay attention to reminders in the app.
Supported DJI Gimbals
Zenmuse H20, Zenmuse H20T, Zenmuse H20N, Zenmuse P1, and Zenmuse L1
Third-Party Payload
Supports only certified payloads developed based on DJI Payload SDK.
Supported Gimbal Configurations
Single downward gimbal
Single upward gimbal
Dual downward gimbals
Single downward gimbal + single upward gimbal
Dual downward gimbals + single upward gimbal
Ingress Protection Rating
IP55
The IP rating is not permanently effective and may decrease due to product wear and tear.
Global Navigation Satellite System
GPS + GLONASS + BeiDou + Galileo
Operating Temperature
-20° to 50° C (-4° to 122° F)

Remote Controller
Screen
7.02-inch LCD touchscreen; resolution: 1920×1200; max brightness: 1200 nits
Weight
Approx. 1.25 kg (without WB37 battery)
Approx. 1.42 kg (with WB37 battery)
Global Navigation Satellite System
GPS + Galileo + BeiDou
Built-in Battery
Type: Li-ion (6500 [email protected] V)
Charging Type: Use the battery station or USB-C fast charger with a max power of 65 W (max voltage of 20 V).
Charging Time: 2 hours
Chemical System: LiNiCoAlO2
External Battery (WB37 Intelligent Battery)
Capacity: 4920 mAh
Voltage: 7.6 V
Type: Li-ion
Energy: 37.39 Wh
Chemical System: LiCoO2
Ingress Protection Rating
IP54
Operating Time
Built-in Battery: approx. 3.3 hours
Built-in Battery + External Battery: approx. 6 hours
Operating Temperature
-20° to 50° C (-4° to 122° F)
Operating Frequency
2.4000-2.4835 GHz
5.725-5.850 GHz
Transmitter Power (EIRP)
2.4000-2.4835 GHz:
< 33 dBm (FCC)
< 20 dBm (CE/SRRC/MIC)

5.725-5.850 GHz:
< 33 dBm (FCC)
< 14 dBm (CE)
< 23 dBm (SRRC)
Wi-Fi Protocol
Wi-Fi 6
Wi-Fi Operating Frequency
2.4000-2.4835 GHz
5.150-5.250 GHz
5.725-5.850 GHz
Bluetooth Protocol
Bluetooth 5.1
Bluetooth Operating Frequency
2.4000-2.4835 GHz

Video Transmission
Video Transmission System
DJI O3 Enterprise Transmission
Antenna
4 video transmission antennas, 2T4R
Max Transmission Distance (unobstructed, free of interference)
20 km (FCC)
8 km (CE/SRRC/MIC)
Max Transmission Distance (with interference)
Low Interference and Obstructed by Buildings: approx. 0-0.5 km
Low Interference and Obstructed by Trees: approx. 0.5-3 km
Strong Interference and Unobstructed: urban landscape, approx. 1.5-3 km
Medium Interference and Unobstructed: suburban landscape, approx. 3-9 km
Low Interference and Unobstructed: suburb/seaside, approx. 9-20 km

Measured with FCC compliance in unobstructed environments with typical interference at a flight altitude of approximately 120 m. Data is for reference only. The actual transmission distance may vary depending on the environment’s obstruction and interference conditions. Please pay attention to reminders in the app.

Vision System
Obstacle Sensing Range
Forward/Backward/Left/Right: 0.7-40 m
Upward/Downward: 0.6-30 m
FOV
Forward/Backward/Downward: 65° (horizontal), 50° (vertical)
Left/Right/Upward: 75° (horizontal), 60° (vertical)
Operating Environment
Surfaces with discernible patterns and adequate lighting (lux > 15)

Infrared Sensing System
Obstacle Sensing Range
0.1-8 m
FOV
30° (±15°)
Operating Environment
Large, diffuse, and reflective obstacles (reflectivity > 10%)

LED Auxiliary Light
Effective Illumination Distance
5 m
Illumination Type
60 Hz, solid glow

FPV Camera
Resolution
1080p
FOV
142°
Frame Rate
30fps

Intelligent Flight Battery
Model
TB65
Capacity
5880 mAh
Voltage
44.76 V
Type
Li-ion
Energy
263.2 Wh
Weight
Approx. 1.35 kg
Operating Temperature
-20° to 50° C (-4° to 122° F)
Ideal Storage Temperature
22° to 30° C (71.6° to 86° F)
Charging Temperature
-20° to 40° C (-4° to 104° F)
When the ambient temperature is below 5° C (41° F), the battery will trigger the auto-heating function. Charging at low temperatures may reduce battery life. It is recommended to charge at 15° to 35° C (59° to 95° F).
Charging Time
With a 220V power supply, it takes approximately 60 minutes to fully charge two TB65 Intelligent Flight Batteries and approximately 30 minutes to charge them from 20% to 90%.
With a 110V power supply, it takes approximately 70 minutes to fully charge two TB65 Intelligent Flight Batteries and approximately 40 minutes to charge them from 20% to 90%.

Intelligent Battery Station
Dimensions
580×358×254 mm (L×W×H)
Net Weight
Approx. 8.98 kg
Compatible Stored Items
Eight TB65 Intelligent Flight Batteries
Four WB37 Intelligent Batteries
Input Voltage
100-120 VAC, 50-60 Hz
220-240 VAC, 50-60 Hz
Max Input Power
1070 W
Output Power
100-120 V: 750 W
220-240 V: 992 W
Operating Temperature
-20° to 40° C (-4° to 104° F)
