Are you looking to buy an iFlight Chimera7 Pro V2 Frame Kit in Australia?

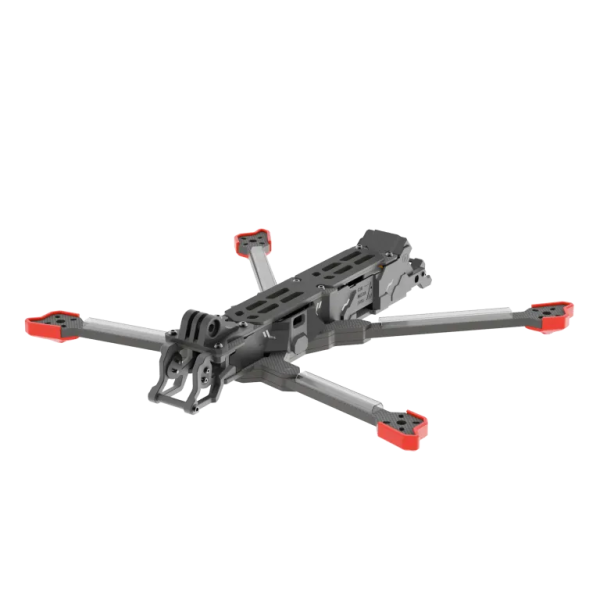

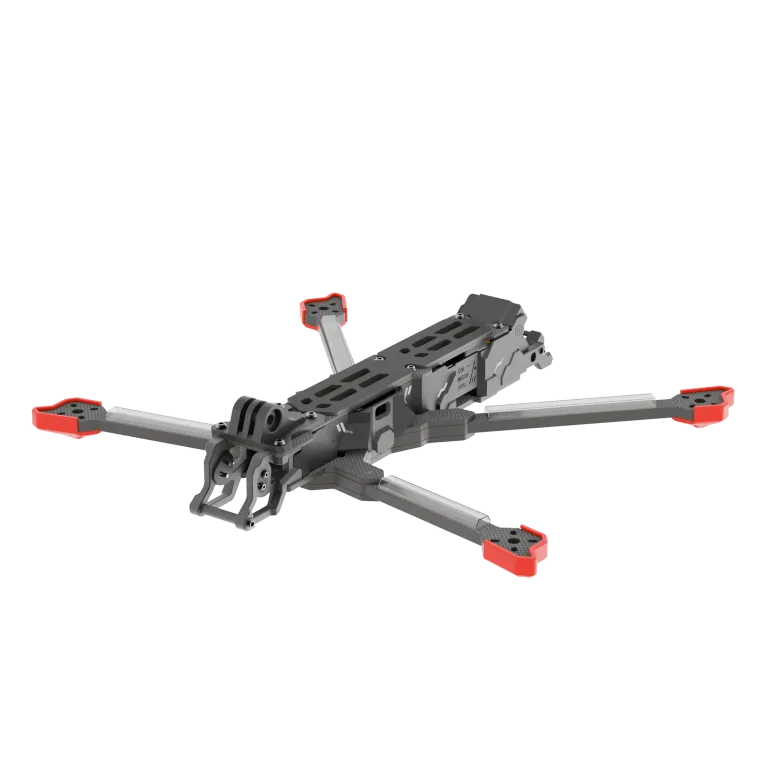

The iFlight Chimera7 is a 7.5″ longrange frame designed to give maximum stability and flight time during your cinematic shoots.
Fly smooth lines on the waterfront all the way to the Swiss Alps if you want! Made from a super-stiff carbon for minimum resonance and recommended 2806.5 motors for maximum 7.5″ prop control.
Fly big batteries top-mounted, or even bigger batteries bottom-mounted, 6 cells recommended or 5 cells for slow cruising. But whatever style you fly, a Lipo or Lion pack will do the job.
- V1 to V2 was upgraded for the DJI O3 HD Air Unit Digital Transmission
- Specially Designed Heatsink for DJI O3 Air Unit.
- New Camera Mount for a wider camera FOV with TPU damping inserts.
- New Side Panels to perfectly fit the O3 Air Unit in the back.
- New Dual 5.8G VTX Antenna TPU mount.
- Latest Chimera7 Pro Frame Upgrades for Maximum Protection.
Upgrading your Chimera7 Pro V1?
If you want to upgrade your Chimera7 Pro V1 with the DJI O3 Air Unit read this:
- Motor wires need to get extended coming from your V1 BNF. The V2 frame got slightly longer arms, motor wires can be extended so don’t worry. Stock wire thickness is 18AWG.
- The XT60 plug was changed, you’ll need to de-solder the V1 plug and install the V2 plug. Included in the frame kit.
- The custom iFlight O3 heatsink and MIPI Digital Video Cable with a length of 215mm is included. Original cable length only 115mm.
- The Antenna TPU in the back comes in 2 Versions; One for the original single DJI VTX antenna, or one for the dual antenna setup. The kit includes a dual antenna TPU. 2x 5.8G LHCP antennas need to be installed.
- The Chimera7 Pro V2 BNF comes with a new Anti Spark filter pre-installed. Please select the option to purchase separately; it’s not included in the frame kit.
Changelog:
December 13, 2022: New silicone inserts have been designed to replace the TPU ones，which are holding the 03 cam in the side panels.
HIGHLIGHTS:
– Battery voltage LED status light (illuminated IF logo on the bottom)
– 6mm rigid arm design for more stiffness
Top- and bottom battery mount option
PRE-TUNED & PRE-SETUP:
– Don’t worry about tuning, we did that for you already! A basic PID- and Filter tuning was applied for a great flight experience!
To restore lost tunes or updates, please check our linked article on “Firmware/Factory Dumps”
– Angle-Mode (self-balancing level mode) is enabled by default to make sure your first flight doesn’t end in a mess!
Please check iFlight’s linked article on “How to disable Angle-Mode, activate Acro-Mode”
– GPS Rescue is OFF by default to prevent unwanted or unexpected drone behavior.
Please check our linked article on “GPS Rescue Mode // Setup”
Specifications:
- Product Name：Chimera7 Pro V2 Frame Kit
- Wheelbase: 327mm
- Frame Dimension: L270*W199*H34 mm
- Frame Body Dimension: 34mm
- Arm Thickness: 6mm
- Bottom Plate Thickness: 3mm
- Top Plate Thickness: 2mm
- Upper Plate Thickness: 3mm
- Camera Plate Thickness: 3mm
- Motor Mounting: 16x16mm / 19*19mm
- VTX Mounting: 30.5*30.5 φ3mm / 25*25 φ1.6mm / 20*20 φ2mm
- Weight: 175grams (not including TPU parts)
Whats Included
- 1 x Chimera7 Pro V2 Frame Kit
- 1x O3 Air Unit Heatsink
- 1x O3 MIPI Digital Video Cable 215mm
- 2x O3 IPEX to RP-SMA Antenna Pigtails
- 1 x O3 Dual Antenna TPU
- 1 x GoPro TPU Base Mount
- 1 x Screw Bag
- 4 x TPU Armguard
- 1 x Front Bumper TPU
- 1 x Rear Bumper TPU
- 2 x Anti-Slip Battery Pad
- 2 x Battery Strap (20*250mm)
Tips:
VTX is set to 25mW by default! Power levels above 25mW require a HAM license or have to be approved by local authorities! Please ensure you’re flying legal frequencies and use our prepared Betaflight VTX tables according to your region.
