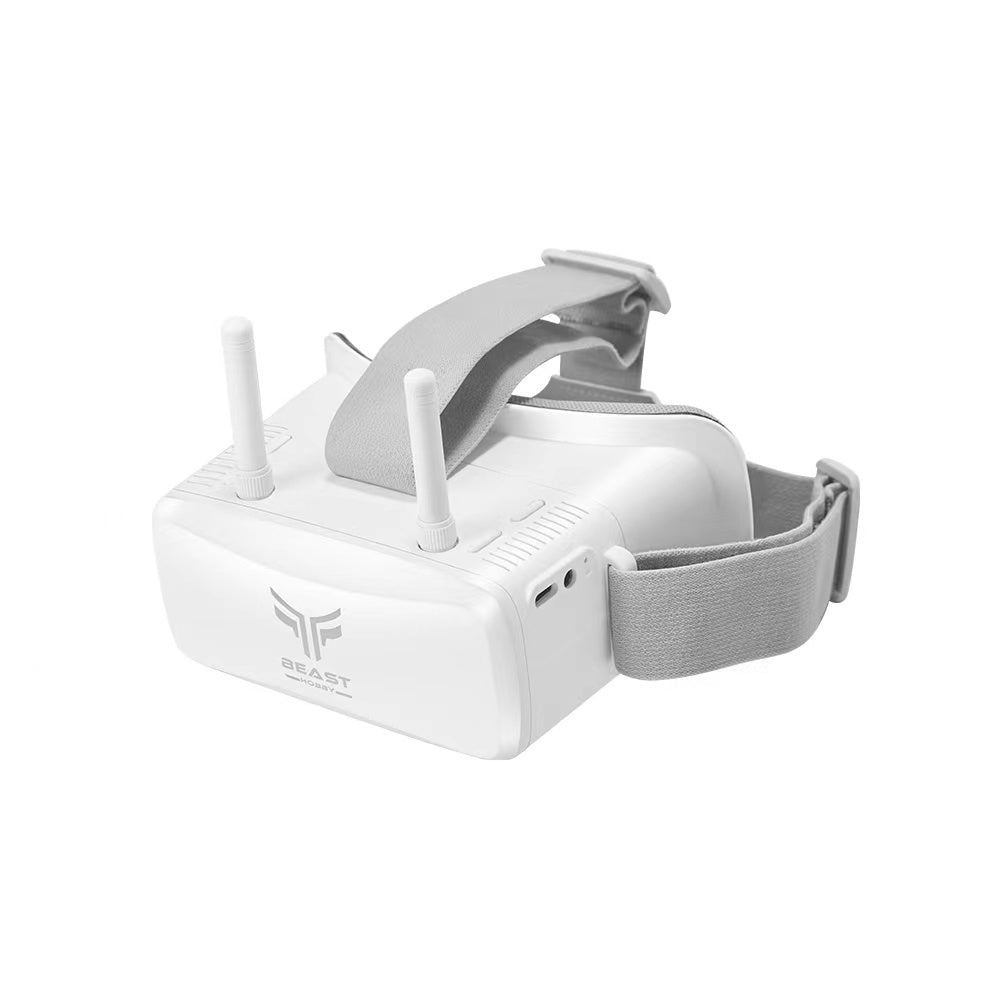

BeastHobby VR100 Focus Adjustments FPV Goggle with 5.8G 40ch Receiver 3.0 inch screen for Racing Drone Micro Whoop [DG] View Cheap Pice

Features:

● New Refraction light path design;
● Object distance adjustable, could match Myopia degree（0°-700°）；
● Low power consumption, working current 350mA；
● super sensitive 5.8GHz receiver module, strong anti-interference, more stable
signal；
● 40 CH modules, channels Auto-Searching；
● 3.0 inch 480*320 Screen resolution Highlight IPS screen；
● Built in 3.7V/1200mAh Lithium battery；
● TYPE-C charging output；
● Real-time video return, no time delay；
● Support Chinese / English menu；
● Support External video signal input；
● Support Av signal video output, could connect with the external DVR for recording；





Specifications:

<table

<td Item

<td colspan="9" VR100 <td Name

<td colspan="9" 5.8G FPV Goggle <td rowspan="5" Display

<td colspan="9" Screen: 3.0 inch IPS Highlight screen <td colspan="9" Screen resolution: 480*320 <td colspan="9" Ratio: 16:9 <td colspan="9" View Angle: 360-degree viewing angle <td colspan="9" Backlight brightness: 500cd/m² <td video delay

<td colspan="9" Less than 10 milliseconds <td rowspan="3" Interface definition

<td antenna

<td colspan="8" SMA male to RP-SMA female <td charging

<td colspan="8" TYRE-C port charge battery <td headphone

<td colspan="8" 3.5mm AV port available for video input and output <td Language

<td colspan="9" Chinese and English <td rowspan="3" Power Supply

<td colspan="9" Power adapter:  suggest use DC5V/1 or DC/5V2A interface <td colspan="9" Capacity: Built in 3.7V/81200mAh lithium polymer battery <td colspan="9" Working power:



*working current: 350 mA

*one hour charge fully, can be worked nearly 3 hours

<td rowspan="7" Wireless

<td colspan="9" Frequency Table (MHz) <td

<td CH1

<td CH2

<td CH3

<td CH4

<td CH5

<td CH6

<td CH7

<td CH8 <td Band A

<td 5865

<td 5845

<td 5825

<td 5805

<td 5785

<td 5765

<td 5745

<td 5725 <td Band B

<td 5733

<td 5752

<td 5771

<td 5790

<td 5809

<td 5828

<td 5847

<td 5866 <td Band E

<td 5705

<td 5685

<td 5665

<td 5645

<td 5885

<td 5905

<td 5925

<td 5945 <td Band F

<td 5740

<td 5760

<td 5780

<td 5800

<td 5820

<td 5840

<td 5860

<td 5880 <td Band R

<td 5658

<td 5695

<td 5732

<td 5769

<td 5806

<td 5843

<td 5880

<td 5917 <td rowspan="2" Appearance

<td colspan="9" Dimension:  107mm * 150mm * 75mm <td colspan="9" Weight: 300g without antenna

Included Accessories:

• Lens Cleaning Cloth
• USB Charging Cable
• Antennas
• AV data cable
• Goggle packing bag
• Carry Case
